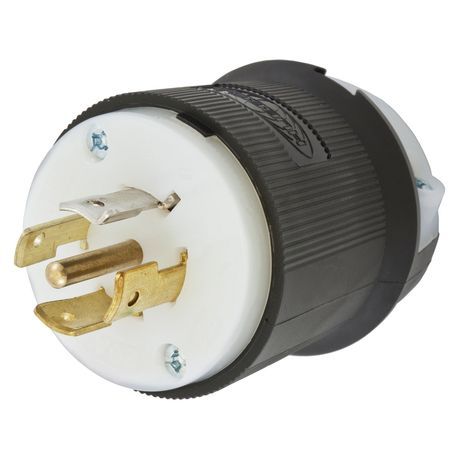

Wiring Device-Kellems HBL2521ST - Twist-Lock® Edge Plug with Spring Termination, 20A, 277/480V, L22-20R, Black and White , Plug, 4 Poles, 5 Wires, Screwless Termination

SKU: HWDHBL2521ST
Brand:Hubbell

Wiring Device-Kellems HBL2521ST - Twist-Lock® Edge Plug with Spring Termination, 20A, 277/480V, L22-20R, Black and White , Plug, 4 Poles, 5 Wires, Screwless Termination

Inventory

Your Warehouse: SMC E-Commerce

Product Overview

Amperage Rating: 20 A
Brand: Hubbell
Color: Black and White
Cord Diameter: 350"-1.150" (9-29)
Dielectric Strength: Withstands 3,000V minimum
Enclosure: Funnel Shaped Wire Entry
Grade: Industrial
Manufacturer: Wiring Device-Kellems
Material: Nylon, Copper Alloy, Spring Steel, Zinc Plated Tri-drive
Name: Wiring Device-Kellems HBL2521ST - Twist-Lock® Edge Plug with Spring Termination, 20A, 277/480V, L22-20R, Black and White , Plug, 4 Poles, 5 Wires, Screwless Termination
NEMA Rating: L22-20R
Number of Poles: 4
Number of Wires: 5
Phase: 3-Phase
Product Type: Simple
Series: Twist-Lock® Edge
Temperature Rating: Maximum Continuous 75°C; Minimum -40°C (w/o impact)
Type: Plug
Unit Of Measure: EA
Voltage Rating: 3-Phase 277/480 V
Weight: 0.35
Wire Size: 14 AWG - 8 AWG stranded copper wire only
