SKU: IDL30451
Brand:IDEAL®

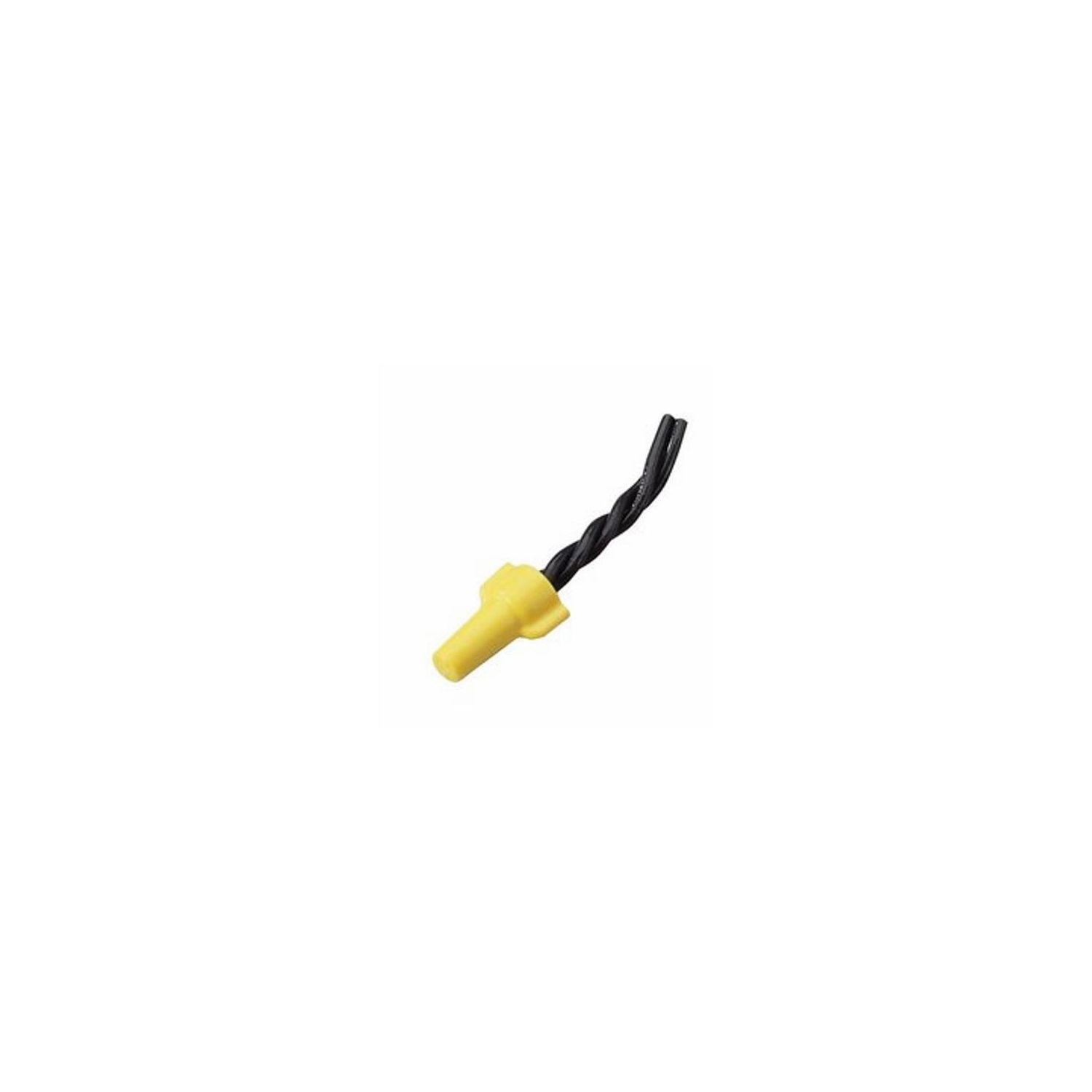

IDEAL® Wing-Nut® 30-451 451 Flame-Retardant Wire Connector, Contoured Winged Shell Style, Live Action/Square Wire Spring, 18 to 10 AWG Wire, Aluminum/Copper Wire, Thermoplastic Polyester/Steel

The Wing-Nut® Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions. The Wing-Nut® also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.
$512.80(BG 500 EA)

Inventory

Your Warehouse: SMC E-Commerce

Product Overview

Brand: IDEAL®
Color: Yellow
Dimensions: 0.6875 in H x 1.015625 in W x 0.48 in Dia
Finish: Zinc Plated
Manufacturer: Ideal Industries
Material: Thermoplastic Polyester/Steel
Name: IDEAL® Wing-Nut® 30-451 451 Flame-Retardant Wire Connector, Contoured Winged Shell Style, Live Action/Square Wire Spring, 18 to 10 AWG Wire, Aluminum/Copper Wire, Thermoplastic Polyester/Steel
Product Type: Simple
Series: 451
Shell Style: Contoured Winged
Specifications: 3/8 in Solid/Stranded Wire Strip
Spring Type: Live Action/Square Wire
Temperature Rating: 105
Type: Flame-Retardant
Unit Of Measure: BX
UNSPSC: 39121445
Voltage Rating: 600
Weight: 0.45
Wire Size: 18 to 10
Wire Type: Aluminum/Copper
